The OpenAPI destination sends each row of your users’ CSV or Excel data to an endpoint of any API that publishes an OpenAPI specification. CSVbox loads the spec, lets you pick the endpoint, and maps your sheet columns to the fields it expects.

​
How it works

1

Select OpenAPI as the destination type

Open your sheet, go to Destination, and choose OpenAPI from the list.

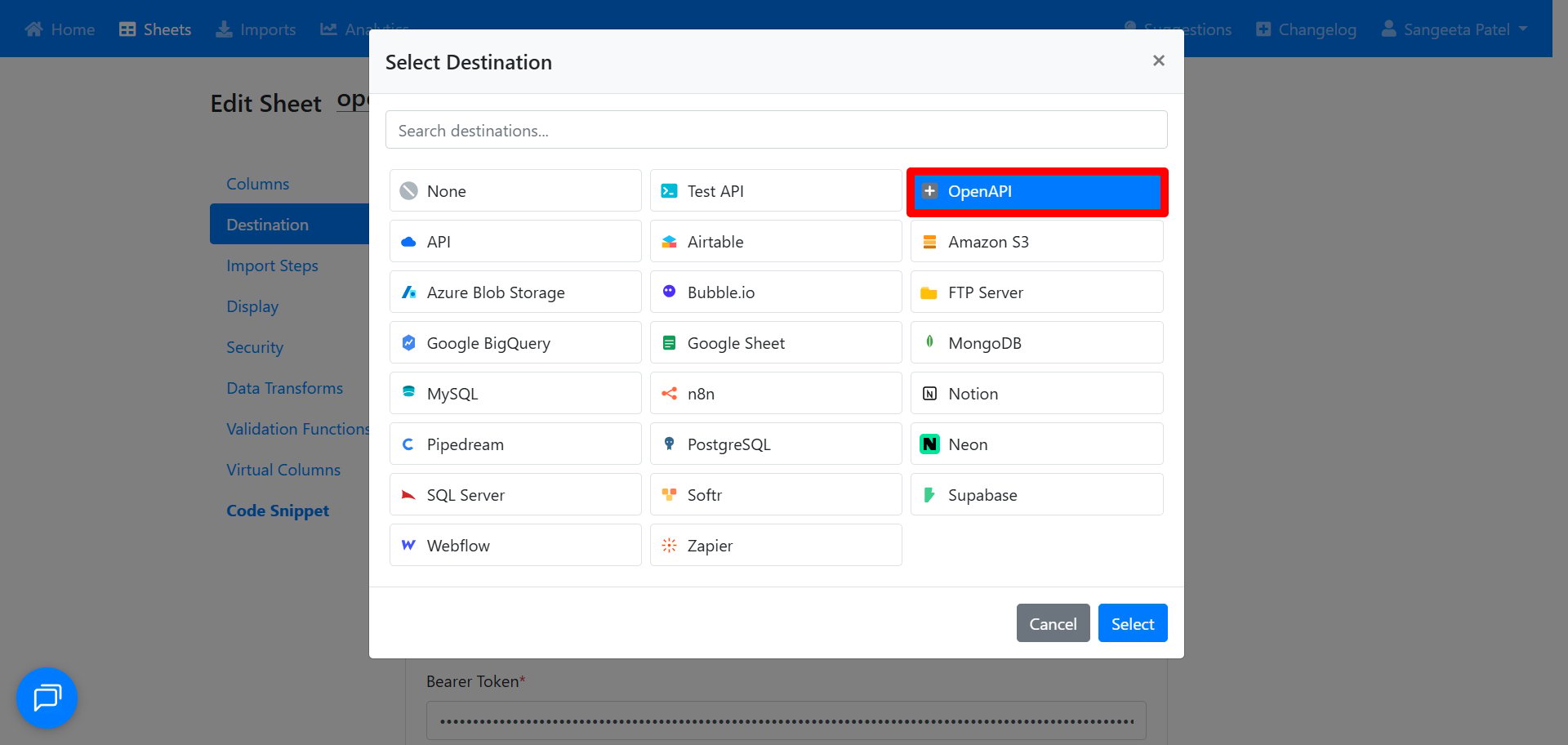

OpenAPI selected as the destination type
2

Load the OpenAPI specification

Paste the OpenAPI Specification URL (a link to the API’s spec file) and click Load Specification. This pulls in the list of available endpoints.
3

Select the endpoint

Pick the endpoint you want to send data to, for example POST /v1/prices - Create Tiered Price.
4

Set the HTTP method

Choose the method for the request, such as POST to create new records.
5

Choose the authentication type

Select how the API verifies you (for example, Bearer Token) and enter your credentials in the field that appears, such as your Bearer Token.
6

Test the connection

Click Test Connection. A green checkmark means your settings are correct.
7

Map sheet columns to the endpoint fields

Match each column in your sheet to the matching field expected by the API. You can also map custom attributes.

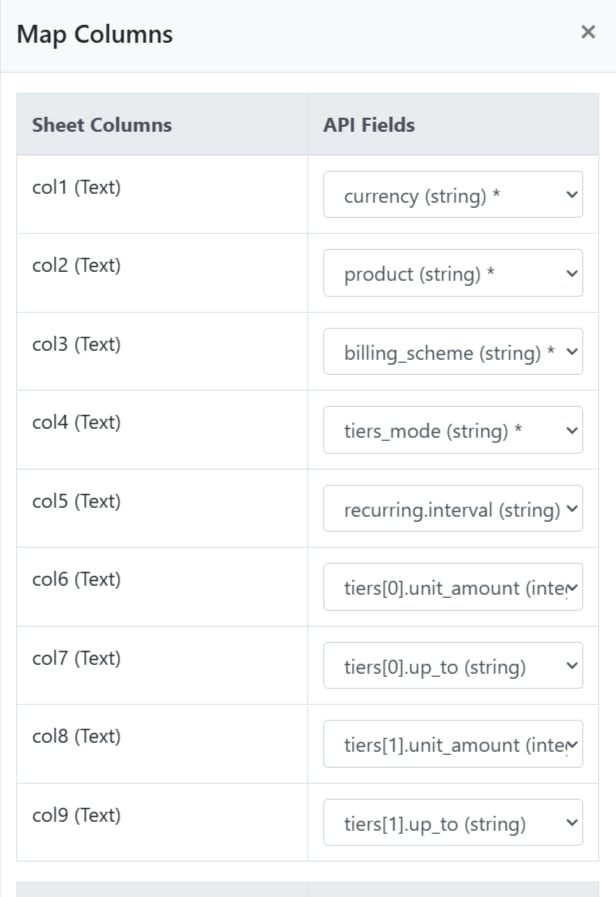

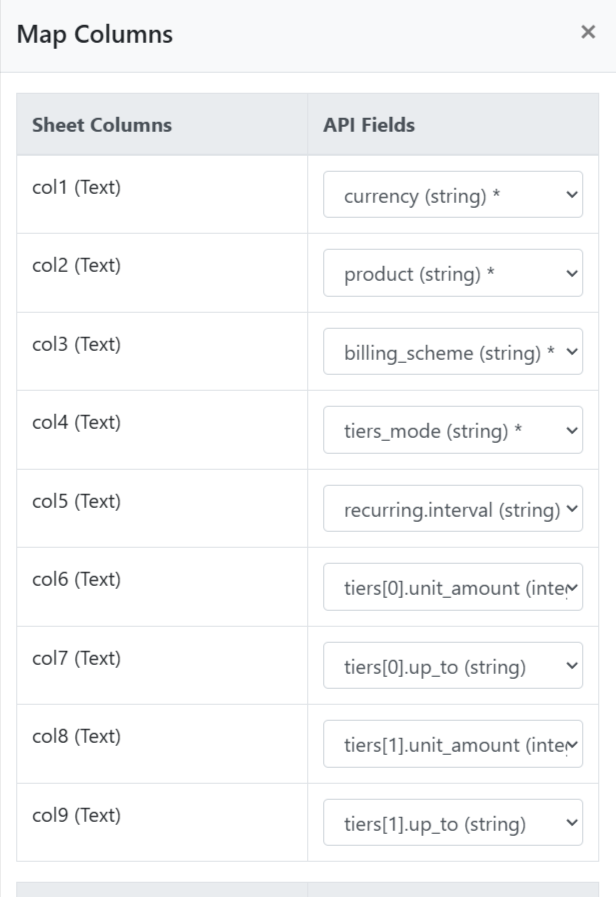

Map sheet columns to API endpoint fields
Once set up, your sheet data is sent to the API endpoint, one request per row.

​
Example

This example shows how to test the OpenAPI destination end to end, for free, using a temporary inbox. You send sheet data to a test URL and watch it arrive live. Once it works, you swap in a real API.

​
What you’ll use

  • webhook.site: a free service that gives you a temporary URL and shows every request it receives. It stands in for a real API so you can see your data arriving.
  • GitHub Gist: a free place to host your OpenAPI spec file so the destination can load it from a URL.

​
Walkthrough

1

Get your test URL

Go to webhook.site. It instantly shows a unique URL at the top, like:
Leave this tab open. Every request you send appears here in real time.
2

Create the spec file

Go to gist.github.com and create a new gist. Paste in the spec below, replacing the servers URL with your webhook.site URL from the previous step.
3

Configure the destination

In your sheet, go to Destination and set it up:Then click Test Connection.
Why None? webhook.site accepts anything, so there’s no token to provide. Leaving authentication on Bearer Token with an empty token is the most common reason the test fails.
4

Map your columns

Match each column in your sheet to a field in the API:
5

Import and watch it work

Upload a small CSV with a couple of rows. As the import runs, switch to your webhook.site tab. Each row appears as its own incoming POST request, with the data inside it.That confirms the whole loop is working.
